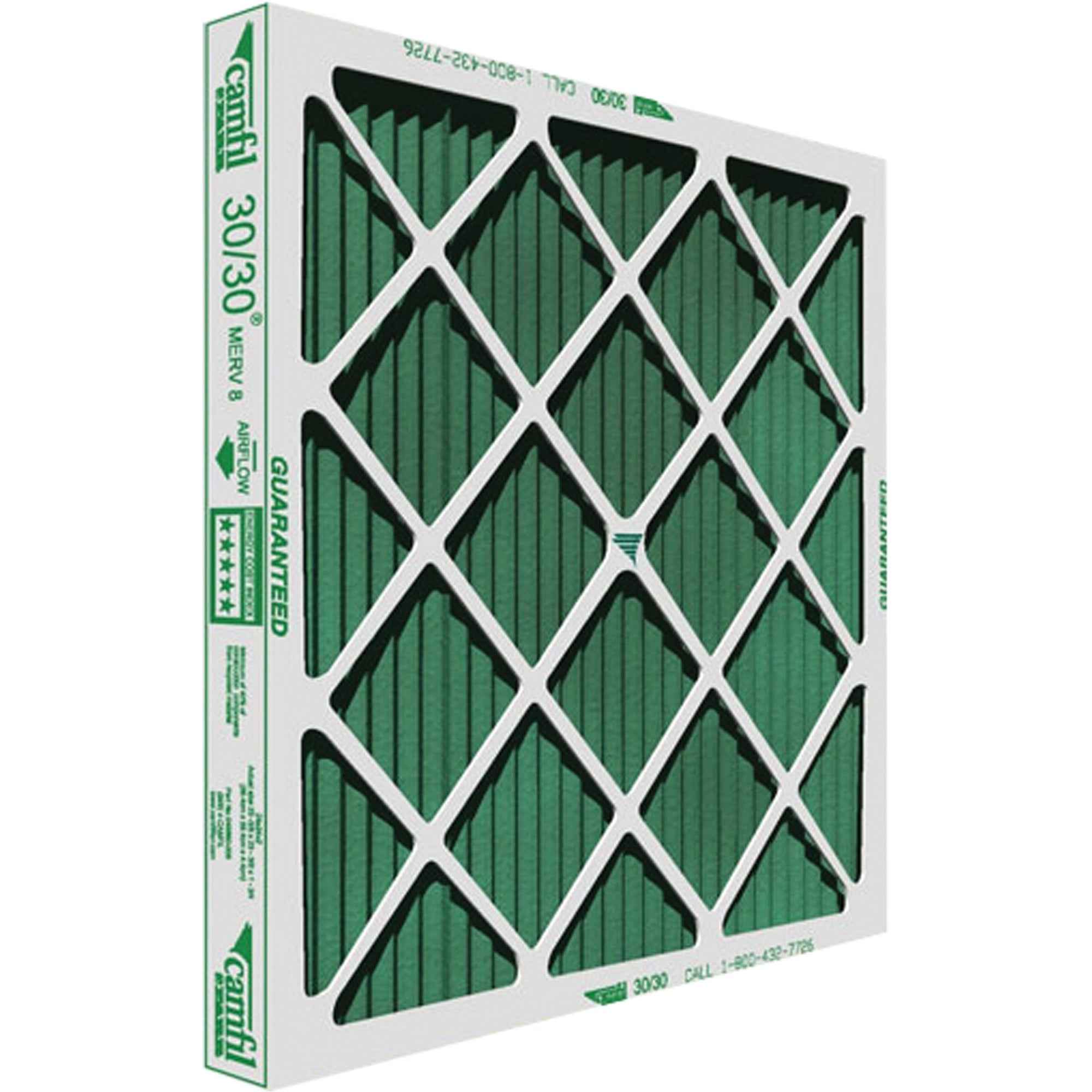

30/30® High-Capacity Pleated Panel Filters, Box, MERV 8, 20" W x 1" D x 20" H

• High capacity pleated panel filter available in 1", 2" or 4" depths
• A welded wire grid to maintain the radial pleat and eliminates distortion of the media pack even under turbulent or high airflow conditions
• Exclusive MERV 8 Media, blended from cotton and polyester fibres, providing consistent dirt removal efficiency throughout the life of the filter
• The 30/30 meets today's medical facility requirements
• A low initial and maintained low resistance to airflow, over the life of the filter that saves energy dollars
• A high wet-strength beverage board frame for maintained filter rigidity in any application
• Maximum continuous operating temperature of 200ºF (93ºC)
• Proprietary blend of cotton and synthetic fibres in a uniform lofted media blanket; ; Efficiency: Value of 8 for MERV and MERV-A when evaluated under ASHRAE Testing Standard 52.2.; ; Typical applications: Pre-filters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers. Ideal for commercial, industrial, institutional or any other application where the ultimate level of protection of equipment and indoor air quality is a concern.; ; Note: Initial resistance to airflow (inches w.g.) Other sizes also available.
• Width: 20"
• Depth: 1"
• Height: 20"
• MERV Rating: 8
• Filter Type: Box
• Manufacturer Part Number: 054862002
• CFM Medium: 485
• CFM High: 970
• Resistance Medium: 0.11
• Resistance High: 0.25
• Media Area sq.ft.: 0.25
• Pleats/foot: 16
