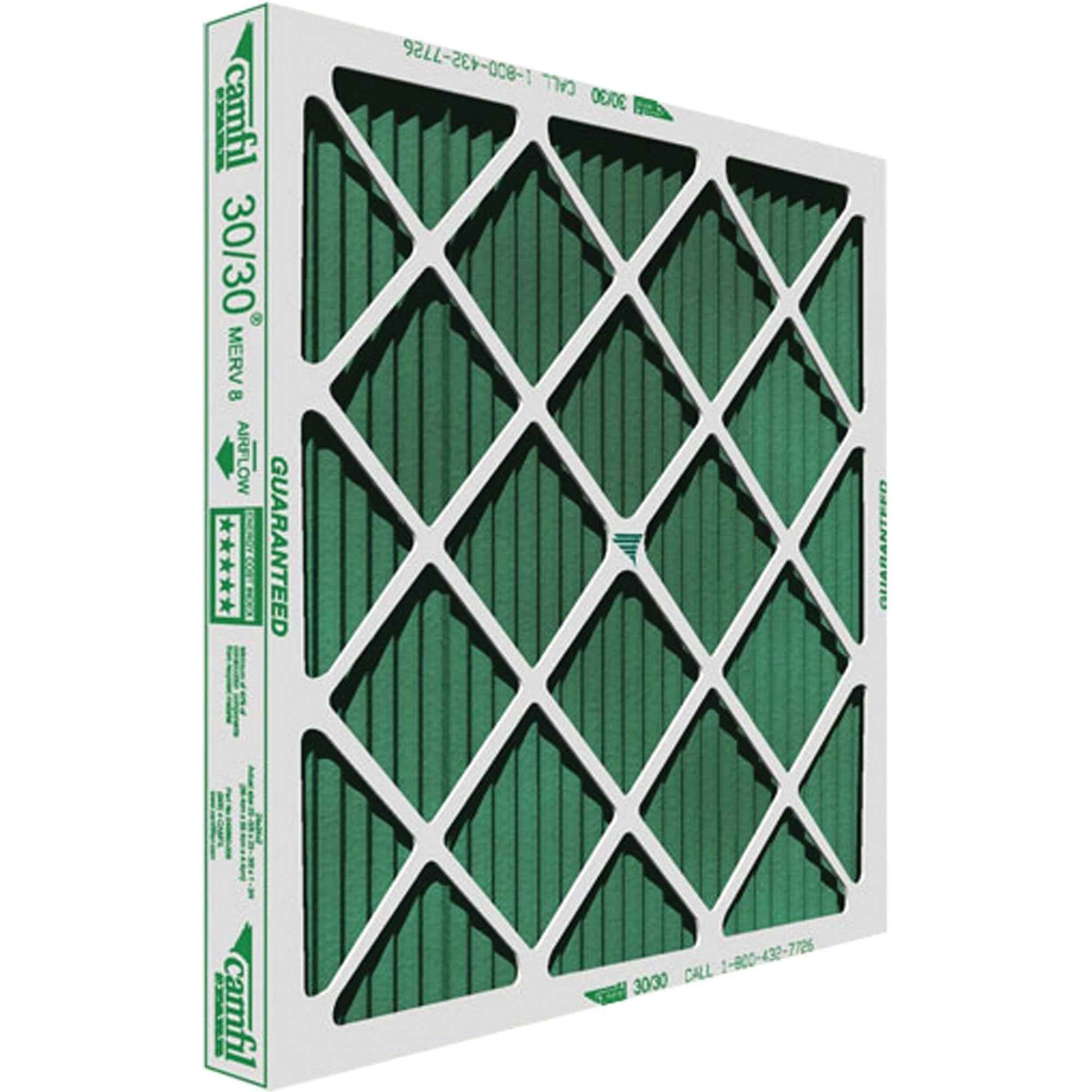

30/30® High-Capacity Pleated Panel Filters, Box, MERV 8, 16" W x 2" D x 25" H
30/30® High-Capacity Pleated Panel Filters, Box, MERV 8, 16" W x 2" D x 25" H
Prix habituel
$28.10 CAD
Prix habituel
Prix promotionnel
$28.10 CAD
Prix unitaire
/
par
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
- High capacity pleated panel filter available in 1", 2" or 4" depths
- A welded wire grid to maintain the radial pleat and eliminates distortion of the media pack even under turbulent or high airflow conditions
- Exclusive MERV 8 Media, blended from cotton and polyester fibres, providing consistent dirt removal efficiency throughout the life of the filter
- The 30/30 meets today's medical facility requirements
- A low initial and maintained low resistance to airflow, over the life of the filter that saves energy dollars
- A high wet-strength beverage board frame for maintained filter rigidity in any application
- Maximum continuous operating temperature of 200ºF (93ºC)
- Proprietary blend of cotton and synthetic fibres in a uniform lofted media blanket; ; Efficiency: Value of 8 for MERV and MERV-A when evaluated under ASHRAE Testing Standard 52.2.; ; Typical applications: Pre-filters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers. Ideal for commercial, industrial, institutional or any other application where the ultimate level of protection of equipment and indoor air quality is a concern.; ; Note: Initial resistance to airflow (inches w.g.) Other sizes also available.
- Width: 16"
- Depth: 2"
- Height: 25"
- MERV Rating: 8
- Filter Type: Box
- Manufacturer Part Number: 049880004
- CFM Medium: 695
- CFM High: 1390
- Resistance Medium: 0.08
- Resistance High: 0.28
- Media Area sq.ft.: 0.28
- Pleats/foot: 15
